C64 MIDI interface

This is an old page with the first prototype, with TTL chips only, which had problems with flash access on some computers, see here for a modern version.

Eagle schematic (revision 0.3): midi.sch (midi.pdf)

Eagle board (revision 0.3): midi.brd

First prototype (revision 0.1):

Testing:

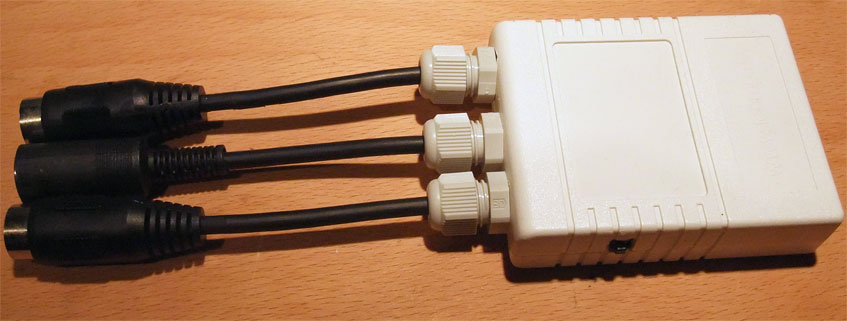

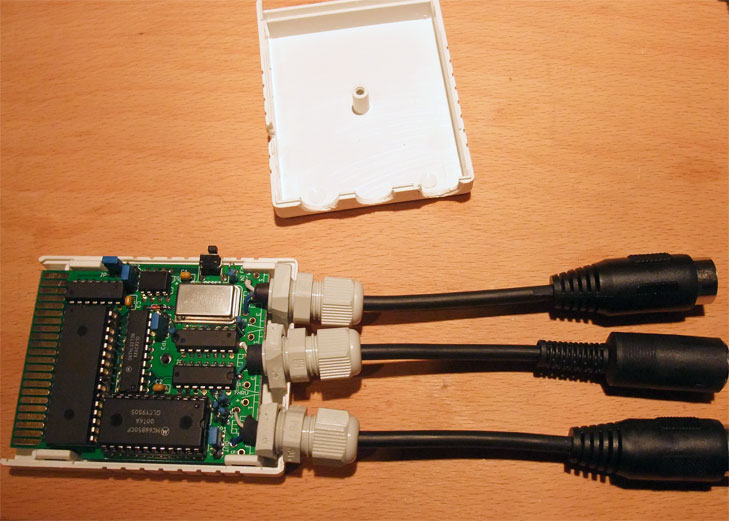

Second revision:

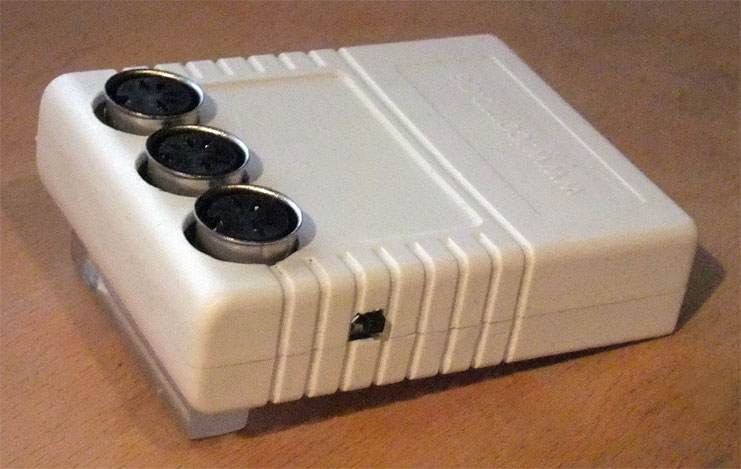

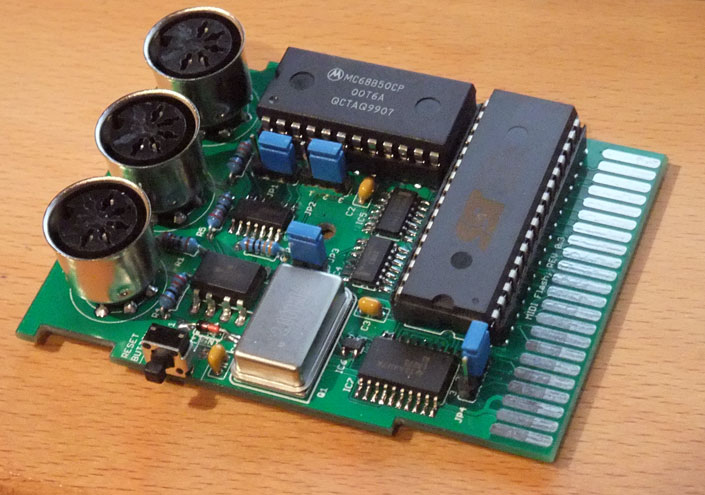

Revision 0.3:

All sources for the cartridge, with the menu system for the file transfer etc. (needs some cleanup) : c64.zip

Qt test program for MIDI file upload: qt.zip


18. Januar 2014, Frank Buß
